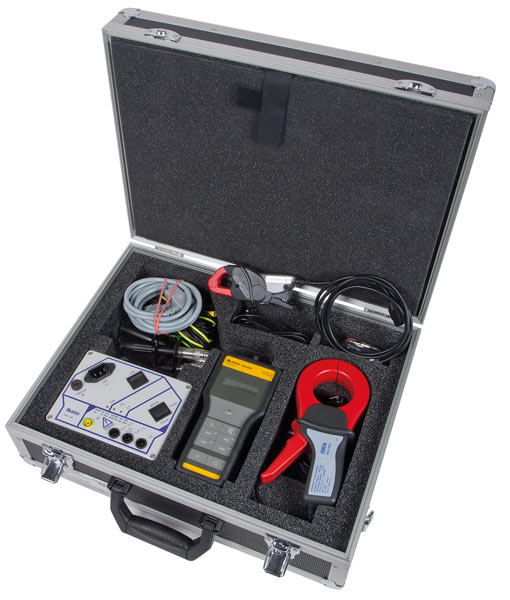

The EDS30… is a portable ground-fault location system designed to locate ground faults in ungrounded systems. All essential components are housed in a robust aluminum case which is convenient to carry.
The EDS30… is a portable ground-fault location system designed to locate ground faults in ungrounded systems. All essential components are housed in a robust aluminum case which is convenient to carry.
Insulation fault evaluator EDS195PM
IT systems without installed Bender pulse generator (Iso685 P variant)
IT systems with installed Bender pulse generator (Iso685 P variant)
Type | Supply voltage | Nominal voltage | Art. No. |
---|---|---|---|
EDS3090 | AC 20…575 V, 42…460 Hz und DC 20…504 V | B91082026 | |
EDS3090PG | AC 230 V, 50…60 Hz | AC 20…575 V, 42…460 Hz und DC 20…504 V | B91082021 |
EDS3090PG-13 | AC 90…132 V, 50…60 Hz | AC 20…575 V, 42…460 Hz und DC 20…504 V | B91082022 |
EDS3096PG | AC 230 V, 50…60 Hz | AC 0…575 V, 42…460 Hz und DC 0…504 V | B91082025 |
EDS3096PG-13 | AC 90…132 V, 50…60 Hz | AC 0…575 V, 42…460 Hz und DC 0…504 V | B91082029 |
EDS3091 | AC 20…265 V, 42…460 Hz und DC 20…308 V | B91082027 | |
EDS3091PG | AC 230 V, 50…60 Hz | AC 20…265 V, 42…460 Hz und DC 20…308 V | B91082023 |
EDS3091PG-13 | AC 90…132 V, 50…60 Hz | AC 20…265 V, 42…460 Hz und DC 20…308 V | B91082024 |
EDS3092PG | AC 230 V, 50…60 Hz AC 230 V, 50…60 Hz | AC 20…265 V, 42…460 Hz und DC 20…308 V AC 20…575 V, 42…460 Hz und DC 20…504 V | B91082030 |
EDS3096PV | AC 230 V, 50…60 Hz | AC 20…575 V, 42…460 Hz und DC 20…504 V | B91082031 |
Scope of delivery
Type | Insulation fault evaluator | Insulation fault test device | Measuring clamps 20 mm | Measuring clamps 52 mm |
---|---|---|---|---|
EDS3090 | EDS195PM | PSA3020 | PSA3052 | |
EDS3090PG | EDS195PM | PGH185 | PSA3020 | PSA3052 |
EDS3090PG-13 | EDS195PM | PGH185-13 | PSA3020 | PSA3052 |
EDS3096PG | EDS195PM | PGH186 | PSA3020 | PSA3052 |
EDS3096PG-13 | EDS195PM | PGH186-13 | PSA3020 | PSA3052 |
EDS3091 | EDS195PM | PSA3320 | PSA3352 | |
EDS3091PG | EDS195PM | PGH183 | PSA3320 | PSA3352 |
EDS3091PG-13 | EDS195PM | PGH183-13 | PSA3320 | PSA3352 |
EDS3092PG | EDS195PM | PGH183 PGH185 | PSA3320 PSA3020 | PSA3352 PSA3052 |
Type | Art-No. | |
---|---|---|
PSA3165 | Measuring clamp 115 mm for EDS3090… and EDS3096… | B980852 |
AGE185 | Coupling device to extend the voltage range of the PGH185/186 AC 42…460 Hz 500…790 V, DC 400…960 V | B980305 |
EDS165-SET | Accessories for fault location in diode-decoupled systems | B91082007 |
Name | Category | Size | Language | Timestamp | D-/B-Number |
---|---|---|---|---|---|
EDS195P | CE Declarations of Conformity | 82.8 KB | 2022/08/1212.08.2022 | ||
EDS309x | CE Declarations of Conformity | 87.7 KB | 2022/08/1212.08.2022 | ||
PGH186 | CE Declarations of Conformity | 82.5 KB | 2022/08/1212.08.2022 | ||
PSA | CE Declarations of Conformity | 83.9 KB | 2022/08/1212.08.2022 | ||
EDS309x | Manuals | 11.4 MB | EN | 2025/06/2323.06.2025 | D00012 |
EDS309x | Datasheets | 10.4 MB | EN | 2025/06/2424.06.2025 | D00012 |
