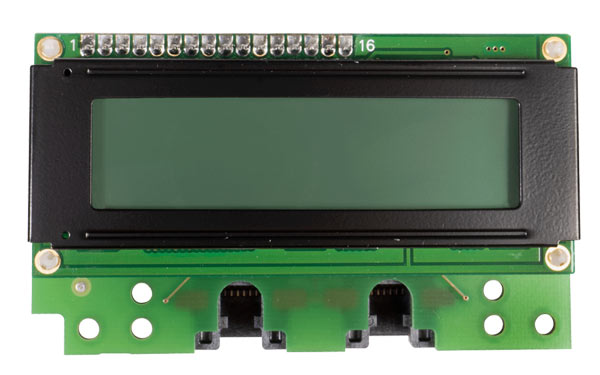

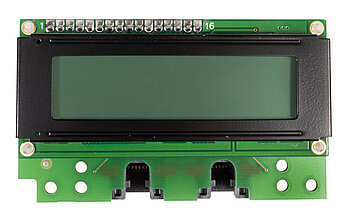

DPM2x16FP Display Module
The display module is intended for use with the CC613 charge controllers. It is used to visualize the status of the charge controller or charging station/wallbox (e.g. function, error)
Suitable accessories for Charge Controller:
The display module is intended for use with the CC613 charge controllers. It is used to visualize the status of the charge controller or charging station/wallbox (e.g. function, error)
Suitable accessories for Charge Controller:
Features
- LED display with 2 x 16 characters
- Two RJ45 interface sockets
Applications
- For use in electric vehicle (EV) charging stations, wall boxes and street light charging points
DPM2x16FP Display Module Variant(s)
| Type | Art. No. |
|---|---|
| DPM2x16FP | B94060120 |
Downloads for DPM2x16FP Display Module
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Flyers | We are your eMobility partner! | 262.3 KB | EN | 2023/11/29 10:01:3629.11.2023 10:01:36 | |
| Manuals | DPM2x16FP Module | 808.0 KB | EN | 2017/09/05 14:02:2705.09.2017 14:02:27 | D00296 |
