COMTRAXX® CP9…-I Series
- Improve engineering efficiency in industrial applications
- Continuously monitor installations with one holistic overview
- Integration and visualization of all Bender and third-party devices
- Future-proof technology due to software development
- Display sizes available (7" and 15.6")

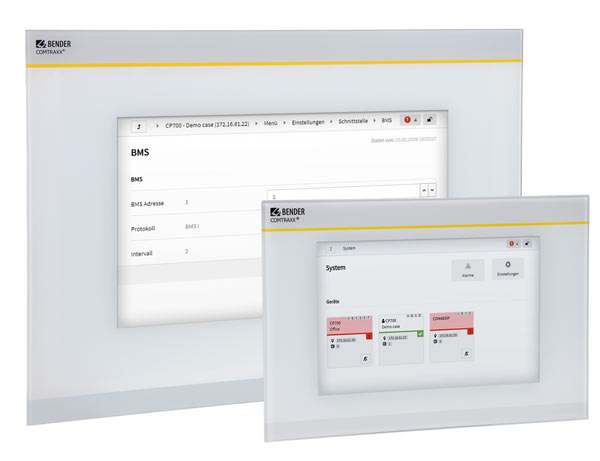

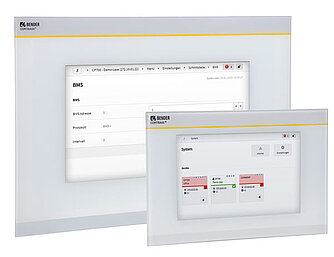

The COMTRAXX® CP9…-I is a series of glass touch control condition monitoring and alarm panels, for use in industrial applications such as manufacturing plants.
CP9...-I is a quick and intuitive solution for the control, visualization, and alarm of connected electrical systems. It integrates data from Bender devices into one comprehensive overview in combination with third-party devices connected via Modbus TCP or RTU. Data from the connected devices feeds into the CP9...-I, enabling the status of installations to be continuously monitored.
The built-in condition monitor and gateway enables values to be measured via a web browser or integrated display. The device has easily interchangeable display options that visualise the specific information required. Flexible in its design, it has a number of options for indication and alarm to suit the needs of end users, to ensure optimal configuration and output.
CP9...-I series is available in a 7” or 15.6” display with tempered non-reflective glass. The robust surface and design of the device suits a range of demanding industrial environments.
Condition monitor CP915-I available as of Q4/2023
Existing interfaces:
- RS-485: BMS, Modbus RTU
- Ethernet: BCOM, Modbus TCP, SNMP, PROFINET
You can find out more about the advantages of the COMTRAXX® CP9…-I series here.
- Improve engineering efficiency in industrial applications
- Continuously monitor installations with one holistic overview
- Integration and visualization of all Bender and third-party devices
- Future-proof technology due to software development
- Display sizes available (7" and 15.6")
The COMTRAXX® CP9…-I is a series of glass touch control condition monitoring and alarm panels, for use in industrial applications such as manufacturing plants.
CP9...-I is a quick and intuitive solution for the control, visualization, and alarm of connected electrical systems. It integrates data from Bender devices into one comprehensive overview in combination with third-party devices connected via Modbus TCP or RTU. Data from the connected devices feeds into the CP9...-I, enabling the status of installations to be continuously monitored.
The built-in condition monitor and gateway enables values to be measured via a web browser or integrated display. The device has easily interchangeable display options that visualise the specific information required. Flexible in its design, it has a number of options for indication and alarm to suit the needs of end users, to ensure optimal configuration and output.
CP9...-I series is available in a 7” or 15.6” display with tempered non-reflective glass. The robust surface and design of the device suits a range of demanding industrial environments.
Condition monitor CP915-I available as of Q4/2023
Existing interfaces:
- RS-485: BMS, Modbus RTU
- Ethernet: BCOM, Modbus TCP, SNMP, PROFINET
You can find out more about the advantages of the COMTRAXX® CP9…-I series here.
Features
- Display size 7" and 15.6" with tempered and anti-reflective glass
- Easy to clean and disinfect, degree of protection IP54
- Screwless mounted front plate
- Condition monitor for Bender systems
- Integrated modular gateway between Bender systems and TCP/IP
- Remote access via LAN, WAN or Internet
- Support of devices that are connected to the internal BMS bus, via BCOM, Modbus RTU or Modbus TCP
- Individual visualisation can be generated, which can be viewed via the web browser or on the display
- Silent due to operation without fan
- High-quality representation with excellent contrast, high resolution and a wide viewing angle
- Possibility of graphical integration of building plans or status display in photo quality
- Visual and acoustic notification in the event of an alarm
Applications
- Monitoring and parameter setting of all Bender products that support communication
- Mounting in the control cabinet door so that all information is immediately visible
- Commissioning and diagnosis of Bender systems
- Remote diagnosis and remote maintenance
- Control stations in all areas
- Monitoring and analysis of data centres
COMTRAXX® CP9…-I Series Variant(s)
Complete devices
| Type | Display size | Supply | Device dimensions (W x H x D) | Weight | Enclosure | Display unit (Glass, tempered) | Art. No. |
|---|---|---|---|---|---|---|---|
| CP907-I | 7" (17,6 cm) | DC 24 V, < 15 W | 226 x 144 x 78 mm | 1,1 kg | Flush-mounting enclosure | white | B95061031 |
| CP907-I | 7" (17,6 cm) | DC 24 V, < 15 W | 226 x 144 x 65 mm | 1,0 kg | Control cabinet door mounting | white | B95061032 (available as of Q4/2023) |
| CP915-I | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | Flush-mounting enclosure | white | B95061033 (available as of Q4/2023) |
| CP915-I | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | Flush-mounting enclosure | grey | B95061034 (available as of Q4/2023) |
Scope of delivery: Display unit, control cabinet door mounting or flush-mounting enclosure incl. mounting plate with electronics, CP9xx connecting cable and plug kit.
Note: A suction cup is required to remove the display (see accessories)
Individual components
| Device series | Type | Art No. |
|---|---|---|
| CP907-I | Flush-mounting enclosure | B95100140 |
| CP915-I | Display unit white | B95061090 |
| CP915-I | Display unit grey | B95061110 |
| CP915-I | Flush-mounting enclosure incl. mounting plate with electronics | B95061092 |
Optional Accessories for COMTRAXX® CP9…-I Series
| Type | Art. No. |
|---|---|
| CP9xx-I replacement plug kit | B95061910 |
| CP9xx-I suction lifter* | B95061911 |
| CP907(-I) surface-mounted enclosure | B95061915 |
| CP915(-I) surface-mounted enclosure | B22301077 |
| STEP-PS Power supply units - DC 24 V/1.75A | B94053111 |
* The suction lifter is required to remove the display of the CP915-I
