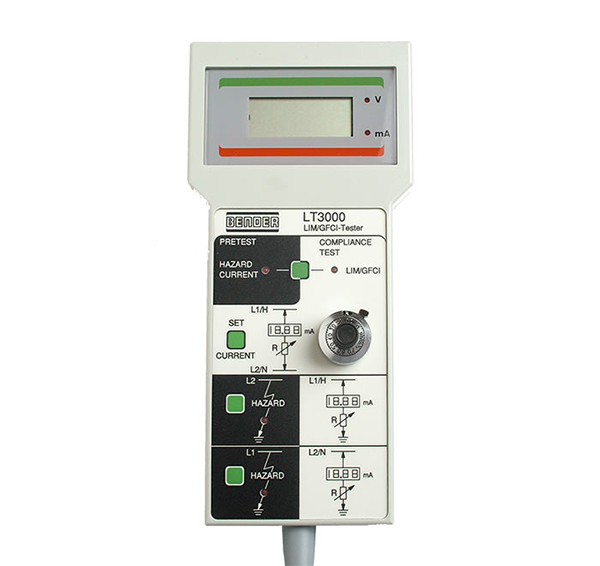

LT3000
- Tests line isolation monitors and ground fault circuit interrupters
- Operates on system voltages from 100 - 240 VAC
- Large digital LCD display
- Overload protection with automatic reset
- Easy to clean, rugged lexan front foil
- System leakage measurements
- Twist-to-lock adapter
- Lightweight (less than 1 lb)
NFPA 99 requires that line isolation monitor (LIM) tests be conducted at regular intervals. The LT3000 is an effective and versatile testing instrument for easily fulfilling these requirements.
The LT3000 plugs into any wall outlet up to 240 V, 50, or 60 Hz. A simple pretest confirms the integrity of the isolated power system and ensures that the system is properly grounded. In the standard view, the LCD display shows the system voltage. In LIM testing mode, adjust the current until it reads 2, 5, or 6 mA on the LCD display. Alternately pushing the L1 and L2 buttons confirms that the LIM is operating correctly.
- Tests line isolation monitors and ground fault circuit interrupters
- Operates on system voltages from 100 - 240 VAC
- Large digital LCD display
- Overload protection with automatic reset
- Easy to clean, rugged lexan front foil
- System leakage measurements
- Twist-to-lock adapter
- Lightweight (less than 1 lb)
NFPA 99 requires that line isolation monitor (LIM) tests be conducted at regular intervals. The LT3000 is an effective and versatile testing instrument for easily fulfilling these requirements.
The LT3000 plugs into any wall outlet up to 240 V, 50, or 60 Hz. A simple pretest confirms the integrity of the isolated power system and ensures that the system is properly grounded. In the standard view, the LCD display shows the system voltage. In LIM testing mode, adjust the current until it reads 2, 5, or 6 mA on the LCD display. Alternately pushing the L1 and L2 buttons confirms that the LIM is operating correctly.
Features
- Operates on system voltages from 100 to 240 VAC
- Tests LIMs
- Large digital LCD display
- Overload protection with automatic reset
- Easy to clean, rugged lexan front foil
- System leakage measurements
- Twist-to-lock adapter
- Lightweight (less than 1 lb.)
Applications
- Testing line isolation monitors in isolated power systems in healthcare facilities
- Testing ground fault circuit interrupters in healthcare facilities
LT3000 Variant(s)
For assistance with ordering please contact Medical.Sales@Bender-us.com or call (610) 383-9200.
Optional Accessories for LT3000
No accessories are available for this product
Downloads for LT3000
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Market Segment Brochures | Isolated Power Planning Guide (US) | 5.3 MB | EN | 2020/10/09 14:57:0709.10.2020 14:57:07 | |
| Datasheets | LT3000 Datasheet (US) | 626.8 KB | EN | 2019/08/27 13:40:4227.08.2019 13:40:42 | |
| Market Segment Brochures | Healthcare Isolated Power Systems Catalog (US) | 6.5 MB | EN | 2020/09/30 20:12:3530.09.2020 20:12:35 |
