Modular Portable X-Ray/Laser Control Isolation Power Panels (MIC)

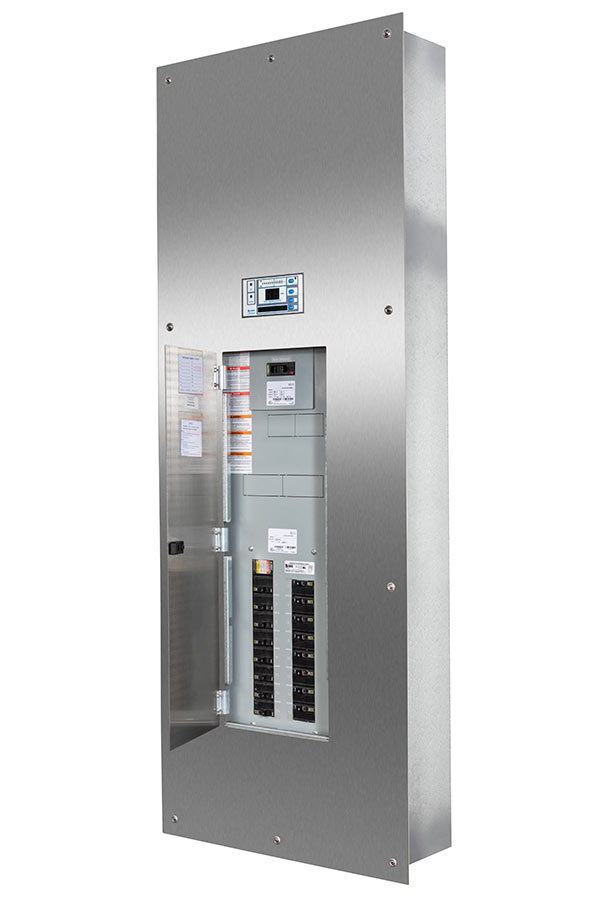

Bender's standard hospital panel provides isolated power service and protection to operating rooms and other critical care areas designated as wet procedure locations. Designed in strict compliance with requirements including NFPA 99, NFPA 70, CSA Z32, UL 1047, and UL 1022, Bender isolated power panels offer the most up-to-date technology for all isolated power distribution requirements. Panels include:
Standard Features
- Isolation transformer with corresponding main circuit breaker
- Bender LIM2010 Line Isolation Monitor (LIM)
- Circuit control lockout via PLC
- Primary Circuit Breakers
- Reference Ground Bus
- Bolt-on style load center
- Up to 12, 2-pole 20-60A circuit breakers (consult factory for alternative configurations)
- Front trim with door in door concealed hinge
Advanced Optional Features
- Transformer load monitoring
- On-site services and support
Click here for more information on our on-site support services.
Bender's standard hospital panel provides isolated power service and protection to operating rooms and other critical care areas designated as wet procedure locations. Designed in strict compliance with requirements including NFPA 99, NFPA 70, CSA Z32, UL 1047, and UL 1022, Bender isolated power panels offer the most up-to-date technology for all isolated power distribution requirements. Panels include:
Standard Features
- Isolation transformer with corresponding main circuit breaker
- Bender LIM2010 Line Isolation Monitor (LIM)
- Circuit control lockout via PLC
- Primary Circuit Breakers
- Reference Ground Bus
- Bolt-on style load center
- Up to 12, 2-pole 20-60A circuit breakers (consult factory for alternative configurations)
- Front trim with door in door concealed hinge
Advanced Optional Features
- Transformer load monitoring
- On-site services and support
Click here for more information on our on-site support services.
Features
- Isolation transformer with corresponding main circuit breaker
- Bender LIM2010 Line Isolation Monitor (LIM)
- Circuit control lockout via PLC
- Up to 12 Contactors
- Primary Circuit Breakers
- Reference Ground Bus
- Bolt-on style load center
- Up to 12, 2-pole 20-60A circuit breakers (consult factory for alternative configurations)
- Front trim with door in door concealed hinge
- Transformer load monitoring
