XRM Series
- Modules with flush or surface mounted receptacles for use with x-ray and laser equipment
- Available for flush- or surface-mounted applications
- Available with door contacts, "in-use" lamp, and BENDER line isolation monitor remote indicator

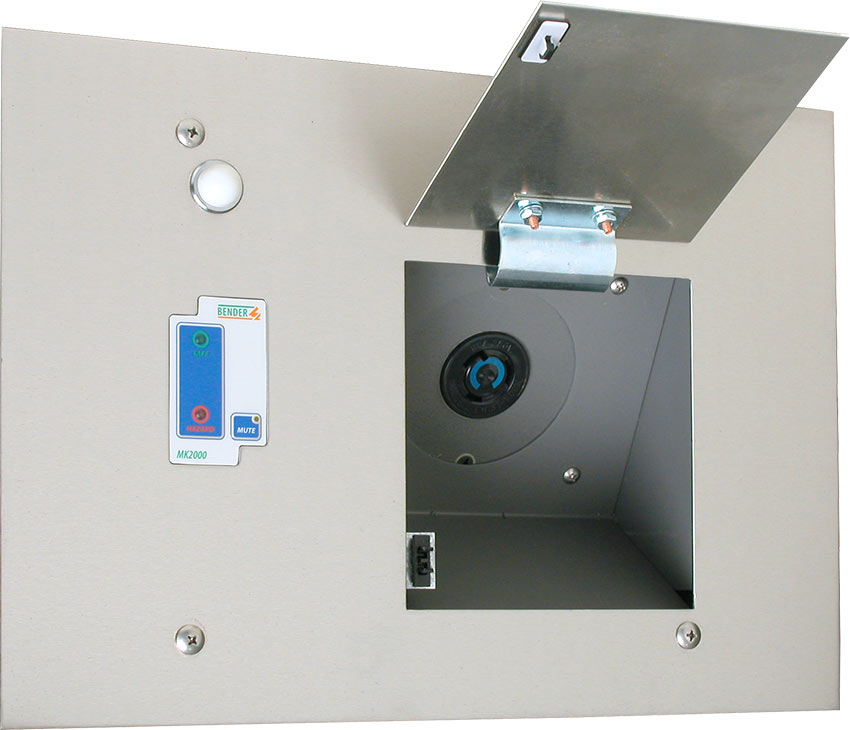

Bender XRM series x-ray/laser receptacle modules provide a convenient source of power for portable x-ray and laser equipment. Designed in strict compliance with UL standards, the XRM modules are a high quality outlet device accessory that is fully compatible with Bender isolated power panels.
Type XRM modules include power receptacle which matches the NEMA plug configuration of the x-ray or laser equipment. In addition, the module may include a remote alarm indicator for the connected line isolation monitor at the isolated power panel. The associated isolated power panel will have a programmable logic controller (PLC) that works in tandem with the module to activate or deactivate the receptacle.
- Modules with flush or surface mounted receptacles for use with x-ray and laser equipment
- Available for flush- or surface-mounted applications
- Available with door contacts, "in-use" lamp, and BENDER line isolation monitor remote indicator
Bender XRM series x-ray/laser receptacle modules provide a convenient source of power for portable x-ray and laser equipment. Designed in strict compliance with UL standards, the XRM modules are a high quality outlet device accessory that is fully compatible with Bender isolated power panels.
Type XRM modules include power receptacle which matches the NEMA plug configuration of the x-ray or laser equipment. In addition, the module may include a remote alarm indicator for the connected line isolation monitor at the isolated power panel. The associated isolated power panel will have a programmable logic controller (PLC) that works in tandem with the module to activate or deactivate the receptacle.
Features
- Modules with flush or surface mounted receptacles for use with X-ray and Laser equipment
- Automatically energize or de-energize the receptacle when using with Bender's MIC Isolated Power panel
- Available with door contacts, "in-use" lamp, and BENDER line isolation monitor remote indicator
Applications
- Isolated power systems
- Healthcare facilities
XRM Series Variant(s)
| Part Name | Description | Ordering No. |
|---|---|---|
| XRM-1B2F | Hubbell IN16494 60A / 250V receptacle, MK2000 series remote indicator, door switch control with in-use indication | B521301139 |
| XRM-5B2F | NEMA 650R, 50A / 250V receptacle, MK2000 series remote indicator, door switch control with in-use indication | B521301185 |
| XRM-8B2F | NEMA L6-30R, 30 A / 250 V receptacle, MK2000 series digital remote indicator, door switch control with in-use indication | B521301177 |
For assistance with ordering please contact Medical.Sales@Bender-us.com or call (610) 383-9200.
