Indicator and control panels play a decisive role at the interfaces between man and machine. Their task is to provide visual and acoustic alarms and to convert information from the system into comprehensible operating and handling instructions. This is especially true when critical operating situations are imminent.

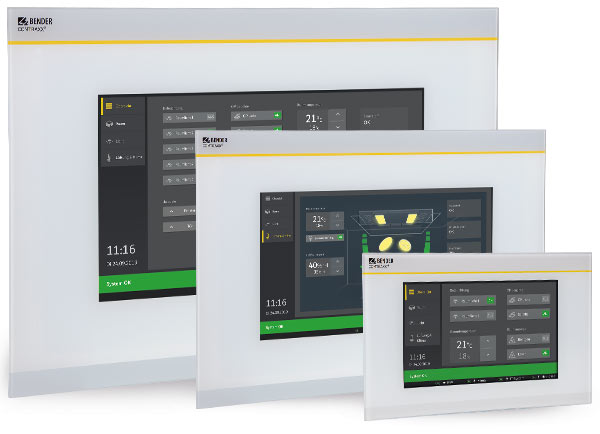

The CP9xx Control Panel offers the user a solution that meets the requirements of modern medical areas as well as those of industrial and purpose-built buildings.
Indicator and control panels play a decisive role at the interfaces between man and machine. Their task is to provide visual and acoustic alarms and to convert information from the system into comprehensible operating and handling instructions. This is especially true when critical operating situations are imminent.
The CP9xx Control Panel offers the user a solution that meets the requirements of modern medical areas as well as those of industrial and purpose-built buildings.
Monitoring, operation and display of:
Complete Devices
Type | Display Size | Power Supply | Devices Dimensions (W x H x D) | Weight | Display Unit (glass, tempered) | Art.* |
---|---|---|---|---|---|---|
CP907 | 7" (17,6 cm) | DC 24 V, < 15 W; alternatively PoE possible | 226 x 144 x 78 mm | 1.1 kg | white | B95061080 |
CP907 without Flush-mounting enclosure | 7" (17,6 cm) | DC 24 V, < 15 W; alternatively PoE possible | 226 x 144 x 78 mm | 0.9 kg | white | B95061093 |
CP915 | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | white | B95061081 |
CP915 | 15,6" (38,6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6,1 kg | grey | B95061085 |
CP924 | 24" (61,0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9,1 kg | white | B95061083 |
CP924 | 24" (61,0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9,1 kg | grey | B95061084 |
* In the offer phase the Art. No. may differ.
Scope of delivery: display unit, flush-mounting enclosure incl. mounting plate with electronics, CP9xx connecting cable and plug connector kit.
Components separately
Device series | Type | Art. No.* | |
---|---|---|---|
CP907 | Flush-mounting enclosure | B95100140 | |
CP915 | Display unit white Display unit grey | B95061112 B95061110 | |
CP924 | Display unit white Display unit grey | B95061097 B95061111 |
* In the offer phase the Art. No. may differ.
Description | Art.-Nr. |
---|---|
CP907 surface-mounting enclosure | B95061915 |
CP915 surface-mounting enclosure | B22301077 |
CP924 surface-mounting enclosure | B22301078 |
CP9xx replacement plug connector kit | B95061910 |
CP9xx suction lifter * | B95061911 |
* The suction lifter is needed to remove the display.
For version CP915 and CP924
